Z41W-16Ti��Z41W-25Ti��⁺Ͻ�Шʽ�l�y�������ڣ�2013-09-04
��Ҫ���܅���(sh��)
��Ҫ���μ��Y(ji��)��(g��u)�ߴ�
| ��̖ | PN |
�������� /MPa |
�m�Üض� /�� |
�m�ý��|(zh��) | ���� | ||
| �y�w���y�w���l�����l�U | �ܷ��� | ���� | |||||
| Z41W-16Ti | 16 | 1.6 | ≤200 | �������g�Խ��|(zh��) | ZTA2 | ���w���� | ���ķ���ϩ |
| Z41W-25Ti | 25 | 2.5 | |||||

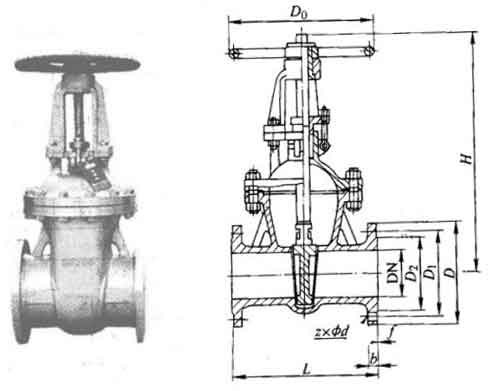

��Ҫ���μ��Y(ji��)��(g��u)�ߴ�
| DN | L | D | D1 | D2 | b | f | z×Φd | H | D0 | ����/kg |
| 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4×Φ14 | 175 | 200 | 4 |
| 20 | 150 | 105 | 75 | 55 | 14 | 2 | 4×Φ14 | 180 | 200 | 5 |
| 25 | 160 | 115 | 85 | 65 | 14 | 2 | 4×Φ14 | 210 | 200 | 6 |
| 32 | 180 | 135 | 100 | 78 | 16 | 2 | 4×Φ18 | 210 | 200 | 7 |
| 40 | 200 | 145 | 110 | 85 | 16 | 3 | 4×Φ18 | 350 | 200 | 19 |
| 50 | 250 | 160 | 125 | 100 | 16 | 3 | 4×Φ18 | 358 | 240 | 29 |
| 65 | 265 | 180 | 145 | 120 | 18 | 3 | 4×Φ18 | 375 | 240 | 33 |
| 80 | 280 | 195 | 160 | 135 | 20 | 3 | 8×Φ18 | 433 | 280 | 45 |
| 100 | 300 | 215 | 180 | 155 | 20 | 3 | 8×Φ18 | 502 | 320 | 63 |
| 125 | 325 | 245 | 210 | 185 | 22 | 3 | 8×Φ18 | 612 | 360 | 108 |
| 150 | 350 | 280 | 240 | 210 | 24 | 3 | 8×Φ23 | 676 | 360 | 134 |
| 200 | 400 | 335 | 295 | 265 | 26 | 3 | 12×Φ23 | 820 | 400 | 192 |
| 250 | 450 | 405 | 355 | 320 | 30 | 3 | 12×Φ25 | 969 | 450 | 273 |
| 300 | 500 | 460 | 410 | 375 | 30 | 3 | 12×Φ25 | 1142 | 560 | 379 |
| 350 | 550 | 520 | 470 | 435 | 34 | 4 | 16×Φ25 | 1280 | 640 | 590 |
| 400 | 600 | 580 | 525 | 485 | 36 | 4 | 16×Φ30 | 1452 | 640 | 850 |
| 450 | 650 | 640 | 585 | 545 | 40 | 4 | 20×Φ30 | 1541 | 720 | 907 |
| 500 | 700 | 705 | 650 | 608 | 44 | 4 | 20×Φ34 | 1676 | 720 | 958 |
| 600 | 800 | 840 | 770 | 718 | 48 | 5 | 20×Φ41 | 1874 | 800 | 1112 |
| DN | L | D | D1 | D2 | b | f | z×Φd | H | D0 | ����/kg |
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 4×Φ14 | 175 | 200 | 4 |
| 20 | 150 | 105 | 75 | 55 | 16 | 2 | 4×Φ14 | 180 | 200 | 5 |
| 25 | 160 | 115 | 85 | 65 | 16 | 2 | 4×Φ14 | 210 | 220 | 6 |
| 32 | 180 | 135 | 100 | 78 | 18 | 2 | 4×Φ18 | 210 | 220 | 7 |
| 40 | 200 | 145 | 110 | 85 | 18 | 3 | 4×Φ18 | 350 | 220 | 18 |
| 50 | 250 | 160 | 125 | 100 | 20 | 3 | 4×Φ18 | 358 | 250 | 25 |
| 65 | 265 | 180 | 145 | 120 | 22 | 3 | 4×Φ18 | 373 | 280 | 35 |
| 80 | 280 | 195 | 160 | 135 | 22 | 3 | 8×Φ18 | 435 | 300 | 50 |
| 100 | 300 | 230 | 190 | 160 | 24 | 3 | 8×Φ18 | 500 | 350 | 65 |
| 125 | 325 | 270 | 220 | 188 | 28 | 3 | 8×Φ23 | 614 | 400 | 100 |
| 150 | 350 | 300 | 250 | 218 | 30 | 3 | 8×Φ25 | 674 | 450 | 135 |
| 200 | 400 | 360 | 310 | 278 | 34 | 3 | 8×Φ23 | 818 | 500 | 180 |
| 250 | 450 | 425 | 370 | 332 | 36 | 3 | 12×Φ25 | 969 | 550 | 207 |
| 300 | 500 | 485 | 430 | 390 | 40 | 4 | 12×Φ30 | 530 | 560 | 400 |
| 350 | 550 | 550 | 490 | 448 | 44 | 4 | 16×Φ30 | 1280 | 640 | 431 |
| 400 | 600 | 610 | 550 | 505 | 48 | 4 | 16×Φ34 | 1450 | 640 | 900 |
| 450 | 650 | 660 | 600 | 555 | 50 | 4 | 20×Φ34 | 1541 | 720 | 1013 |
| 500 | 700 | 730 | 660 | 610 | 52 | 4 | 20×Φ41 | 1676 | 720 | 1166 |
| 600 | 800 | 840 | 770 | 718 | 56 | 5 | 20×Φ41 | 1874 | 800 | 1258 |
| 700 | 900 | 955 | 875 | 815 | 60 | 5 | 24×Φ48 | 2280 | 850 | �� |
| 800 | 1000 | 1070 | 990 | 930 | 64 | 5 | 24×Φ48 | 2420 | 700 | �� |
