KZ41H��PN16��PN25�����m�l�y��Ҫ���܅���(sh��)���Y(ji��)��(g��u)�ߴ��������ڣ�2015-03-30
��Ҫ���܅���(sh��)
| ��̖ | PN |
�������� /MPa |
�m�Üض� /�� |
�m�ý��|(zh��) | ���� | ||
| �y�w���y�w���l�� | �y�U | �ܷ��� | |||||
| KZ41H-16 | 16 | 1.6 | ≤425 | ˮ����������Ʒ | �� | �� | �t���P� |
| KZ41H-25 | 25 | 2.5 | |||||

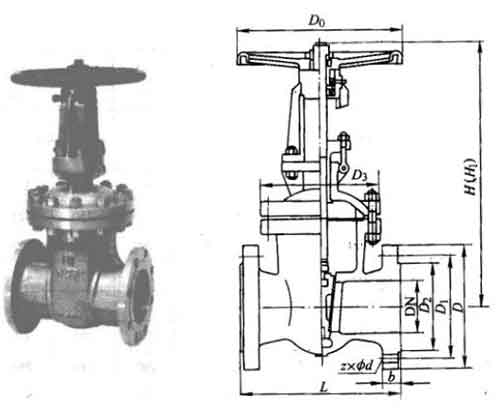

��Ҫ���μ��Y(ji��)��(g��u)�ߴ�
| DN | L | D | D1 | D2 | b | z×Φd | D3 | H | H1 | D0 | ����/kg |
| 15 | 130 | 95 | 65 | 45 | 14 | 4×Φ14 | �� | 175 | 195 | 200 | 4 |
| 20 | 150 | 105 | 75 | 55 | 14 | 4×Φ14 | �� | 180 | 205 | 200 | 5 |
| 25 | 160 | 115 | 85 | 65 | 14 | 4×Φ14 | �� | 210 | 240 | 220 | 6 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4×Φ18 | �� | 210 | 240 | 220 | 7 |
| 40 | 200 | 1450 | 110 | 85 | 16 | 4×Φ18 | �� | 350 | 425 | 200 | 18 |
| 50 | 250 | 160 | 125 | 100 | 16 | 4×Φ18 | 180 | 358 | 430 | 240 | 29 |
| 65 | 265 | 180 | 145 | 120 | 18 | 4×Φ18 | 190 | 373 | 452 | 240 | 33 |
| 80 | 280 | 195 | 160 | 135 | 20 | 8×Φ18 | 220 | 435 | 530 | 280 | 46 |
| 100 | 300 | 215 | 180 | 155 | 20 | 8×Φ18 | 260 | 500 | 620 | 320 | 63 |
| 125 | 325 | 245 | 210 | 185 | 22 | 8×Φ18 | 295 | 514 | 756 | 360 | 108 |
| 150 | 350 | 280 | 240 | 210 | 24 | 8×Φ23 | 335 | 574 | 845 | 360 | 134 |
| 200 | 400 | 335 | 295 | 265 | 26 | 12×Φ23 | 400 | 718 | 1041 | 400 | 192 |
| 250 | 450 | 405 | 355 | 320 | 30 | 12×Φ25 | 475 | 969 | 1244 | 450 | 273 |
| 300 | 500 | 460 | 410 | 375 | 30 | 12×Φ25 | 530 | 1145 | 1474 | 560 | 379 |
| 350 | 550 | 520 | 470 | 435 | 34 | 16×Φ25 | �� | 1280 | 1663 | 647 | 590 |
| 400 | 600 | 580 | 525 | 485 | 36 | 16×Φ30 | �� | 1450 | 1886 | 720 | 849 |
| 500 | 700 | 705 | 650 | 608 | 34 | 20×Φ34 | �� | 1676 | 2181 | 720 | 958 |
| DN | L | D | D1 | D2 | b | z×Φd | D3 | H | H1 | D0 | ����/kg |
| 15 | 130 | 95 | 65 | 45 | 16 | 4×Φ14 | �� | 175 | 195 | 200 | 4 |
| 20 | 150 | 105 | 75 | 55 | 16 | 4×Φ14 | �� | 180 | 205 | 200 | 5 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4×Φ14 | �� | 210 | 240 | 220 | 6 |
| 32 | 180 | 135 | 100 | 78 | 18 | 4×Φ18 | �� | 210 | 240 | 220 | 7 |
| 40 | 200 | 1450 | 110 | 85 | 18 | 4×Φ18 | �� | 350 | 425 | 200 | 18 |
| 50 | 250 | 160 | 125 | 100 | 20 | 4×Φ18 | 180 | 358 | 438 | 240 | 28 |
| 65 | 265 | 180 | 145 | 120 | 22 | 8×Φ18 | 190 | 373 | 452 | 240 | 33 |
| 80 | 280 | 195 | 160 | 135 | 22 | 8×Φ18 | 220 | 435 | 530 | 280 | 46 |
| 100 | 300 | 230 | 190 | 160 | 24 | 8×Φ23 | 260 | 501 | 620 | 320 | 64 |
| 125 | 325 | 270 | 220 | 188 | 28 | 8×Φ25 | 295 | 614 | 756 | 360 | 105 |
| 150 | 350 | 300 | 250 | 218 | 30 | 8×Φ25 | 335 | 674 | 845 | 360 | 134 |
| 200 | 400 | 360 | 310 | 278 | 34 | 12×Φ25 | 400 | 818 | 1041 | 400 | 213 |
| 250 | 450 | 425 | 370 | 332 | 36 | 12×Φ30 | 475 | 969 | 1244 | 450 | 290 |
| 300 | 500 | 485 | 430 | 390 | 40 | 16×Φ30 | 530 | 1145 | 1474 | 560 | 399 |
| 350 | 550 | 550 | 490 | 448 | 44 | 16×Φ34 | �� | 1280 | 1663 | 647 | 631 |
| 400 | 600 | 610 | 550 | 505 | 48 | 16×Φ34 | �� | 1450 | 1886 | 720 | 900 |
