݆��(du��)�Aʽ�о��������~���y
GB/T3036-1994��(du��)�Aʽ�о����y Butt-clamped Marine butterfly valve ��Ҫ�㲿�����|(zh��)Materials of Main Parts ݆��(du��)�Aʽ�о� �������~���y ��Ҫ�㲿�����|(zh��) ������Q Parts name ���� Material �y�wBody �X���~ Aluminum bronze ���� Butterfly board �X���~ A...
�a(ch��n)Ʒ��̖(h��o)��C/CS��
�a(ch��n)Ʒ�ڏ���DN����40~1200(mm)
�a(ch��n)Ʒ������PN����1.0~1.6(Mpa)
�������ڣ�2015-07-31
���M(f��i)ԃ�r(ji��)
24С�r(sh��)���M(f��i)��ԃ�Ԓ021-80392609
- �a(ch��n)ƷԔ��
GB/T3036-1994��(du��)�Aʽ�о����y
Butt-clamped Marine butterfly valve
��Ҫ�㲿�����|(zh��)Materials of Main Parts
ע��Ҫ����L(zh��ng)�Uӆ؛�r(sh��)��(y��ng)ע�����L(zh��ng)�U���L(zh��ng)����
Note:Please note the length of the rod to be extended at order if so needed.
Butt-clamped Marine butterfly valve
��Ҫ�㲿�����|(zh��)Materials of Main Parts
| ������Q Parts name | ���� Material |
|---|---|
| �y�wBody | �X���~ Aluminum bronze |
| ���� Butterfly board | �X���~ Aluminum bronze |
| �y�UStem | ̼������P䓡��t��f��Grade,WCB,Crstainlesgsteel |
| �ܷ��� Sealing face | �ȶ��z�������z���ұ��z��������Neoprene,NBR,EPDM,PTFE |
| ���� Packing | ���ܖ�������ʯī�����z��V�͉|PTFE��F(xi��n)lexiblegraphite,NBR,V.washer |

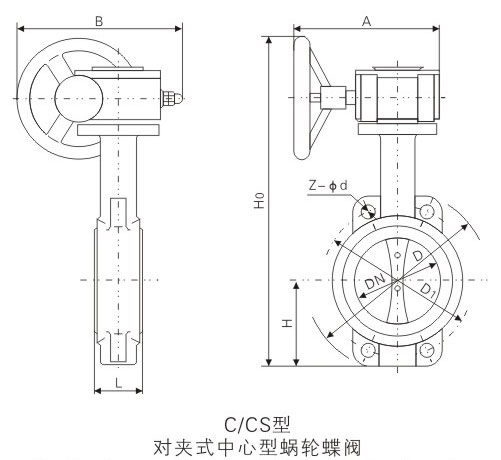

�����ߴ�Dimensions
|
���Q���� PN(Mpa) |
���Qͨ�� DN(mm) |
�Y(ji��)��(g��u)�ߴ� Structure dimension |
���γߴ� Extermal dimension(mm) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| L | D | D1 | z-φd | H | C/CS�� | ||||
| H0 | A | B | |||||||
|
1.0 1.6 |
40 | 43 | 145 | 110 | 4-18 | 58 | 295 | 193 | 125 |
| 50 | 43 | 165 | 125 | 4-18 | 63 | 306 | 193 | 125 | |
| 65 | 46 | 185 | 145 | 4-18 | 70 | 320 | 193 | 125 | |
| 80 | 46 | 200 | 160 | 4-18/8-18 | 83 | 345 | 193 | 125 | |
| 100 | 52 | 220 | 180 | 8-18 | 105 | 385 | 193 | 125 | |
| 125 | 56 | 250 | 210 | 8-18 | 115 | 410 | 193 | 125 | |
| 150 | 56 | 285 | 240 | 8-22 | 137 | 445 | 193 | 125 | |
| 200 | 60 | 340 | 295 | 8-22/12-22 | 164 | 570 | 283 | 165 | |
| 250 | 68 | 395/405 | 350/355 | 12-22 | 206 | 645 | 283 | 165 | |
| 300 | 78 | 445/460 | 400/410 | 12-22 | 230 | 740 | 334 | 175 | |
| 1.0 | 350 | 78 | 505 | 460 | 16-22 | 248 | 765 | 334 | 175 |
| 400 | 102 | 565 | 515 | 16-26 | 290 | 875 | 425 | 210 | |
| 450 | 114 | 615 | 565 | 20-26 | 320 | 940 | 425 | 210 | |
| 500 | 127 | 670 | 620 | 20-26 | 345 | 995 | 425 | 210 | |
| 600 | 154 | 780 | 725 | 20-30 | 410 | 1130 | 425 | 210 | |
| 700 | 165 | 895 | 840 | 24-30 | 480 | 1475 | 620 | 320 | |
| 800 | 190 | 1015 | 950 | 24-33 | 525 | 1535 | 620 | 320 | |
| 900 | 203 | 1115 | 1050 | 28-33 | 585 | 1660 | 620 | 320 | |
| 1000 | 216 | 1230 | 1160 | 28-36 | 640 | 1760 | 620 | 320 | |
| 1200 | 254 | 1455 | 1380 | 32-39 | 755 | 1995 | 620 | 320 | |
Note:Please note the length of the rod to be extended at order if so needed.
�����������������֡���(sh��)��(j��)���DƬ��ֻ�m���څ�����݆��(du��)�Aʽ�о��������~���y���܅���(sh��)���Y(ji��)��(g��u)�ߴ煢��(sh��)���r(ji��)���Ԕ����Ո(q��ng)(li��n)ϵ�҂����Ԓ��021-80392609��
-
