GB/T597-1983�������ݼy���~ֹ���y
Marine bronze male thread check valve
����Ҏ(gu��)�� Technical Data
��Ҫ�㲿�����|(zh��)Materials of Main Parts
Marine bronze male thread check valve
����Ҏ(gu��)�� Technical Data
|
���Q���� Nominal Pressure (MPa) |
���Qͨ�� Nominal Diameter (mm) |
�m�ý��|(zh��) Applicable medium |
|---|---|---|
| 4.0 | 10-32 |
��ˮ����ˮ�����͡�ȼ�ͺ�t≤250������ Sea water,Fresh water.Lubricanting oil,Fuel oil, t≤250�� steam. |
��Ҫ�㲿�����|(zh��)Materials of Main Parts
|
������Q Parts name |
���� Material |
|
|---|---|---|
| ���QName | ��̖(h��o)Marks | |
| �y�wBody | �T�X���~ Cast Aluminum Bronze | ZCuAI9Mn2 |
| �y�w���y�PCover��Disc | �X���~ Aluminum Bronze | CuAI9Mn2 |

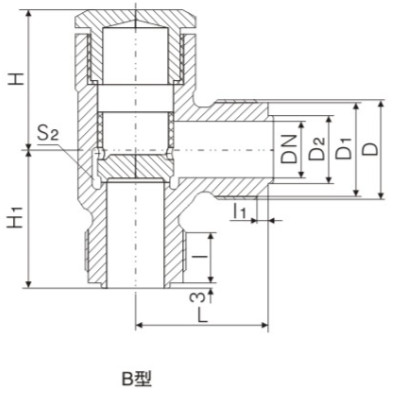

�����ߴ�Dmiensions
|
���Qͨ�� DN (mm) |
�Y(ji��)��(g��u)�ߴ� Structure Dimension |
�ݼy���^ Thread Joint |
���ֳߴ� Wrench size S2 |
���� Lift Range m |
�������� Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H≈ | H1 | |||||||||
| B�� | B�� | D | D1 | D2 | I | h | B�� | B�� | |||
| 10 | 47 | 54 | 41 | M27x1.5 | 24.8 | 14 | 16 | 3 | 32 | 7 | 0.58 |
| 15 | 55 | 61 | 52 | M36x2 | 33 | 22 | 22 | 5 | 41 | 10 | 0.94 |
| 20 | 58 | 65 | 55 | M39x2 | 36 | 25 | 23 | 5 | 46 | 12 | 1.24 |
| 25 | 65 | 70 | 64 | M48x2 | 45 | 32 | 26 | 6 | 50 | 14 | 1.58 |
| 32 | 70 | 84 | 72 | M56x2 | 53 | 38 | 28 | 6 | 60 | 16 | 2.61 |
�����������������֡���(sh��)��(j��)���DƬ��ֻ�m���څ������������ݼyֱ�������~ֹ���y���܅���(sh��)���Y(ji��)��(g��u)�ߴ煢��(sh��)���r(ji��)���Ԕ����Ո(q��ng)(li��n)ϵ�҂����Ԓ��021-80392609��
-
